Product Information Sheet
The BECO X ultrasonic water meter delivers unmatched accuracy with zero maintenance and supports both wireless and wired communication. Trusted globally, it ensures reliable performance and smart water management.

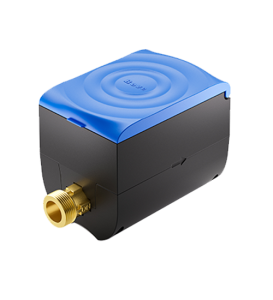

Product : Water meter Ultrasonic DN20 RS485
Stock Code : BX20r
Retail Price : AUD 185.47
Availability : In Stock
Customer Group
NOT LOGGED IN
Date Selected
16 Jul, 2025
The BECO X ultrasonic water meter, devoid of moving parts, ensures unparalleled accuracy and zero maintenance.
It offers a suite of both wireless and wired communication options, providing a comprehensive solution for intelligent water management.
Its stable, reliable performance has been proven in numerous countries, maintaining excellent wireless connectivity and delivering efficient data feedback.
Ideal for those seeking precision and ease of management in water utilities.
Specifications
| Weight | 1.500000 |
|---|---|
| Material | Brass 59-1 |
| Power supply | off-grid |
| Installation Method | Horizontal or vertical |
| Protection Level | IP68 |
| Environmental | E1, M1, B |
| Source | Onesense |
| Pipe Diameter | BECO X - 15 : DN15 BECO X - 20 : DN20 BECO X - 25 : DN25 BECO X - 32 : DN32 BECO X - 40 : DN40 |
| Q1 (m³/h) | BECO X - 15 : 0.005 BECO X - 20 : 0.008 BECO X - 25 : 0.0126 BECO X - 32 : 0.02 BECO X - 40 : 0.032 |
| Q2 (m³/h) | BECO X - 15 : 2.5 BECO X - 20 : 4.0 BECO X - 25 : 6.3 BECO X - 32 : 10 BECO X - 40 : 16 |
| Q3 (m³/h) | BECO X - 15 : 3.125 BECO X - 20 : 5.0 BECO X - 25 : 7.875 BECO X - 32 : 12.5 BECO X - 40 : 20 |
| Connection | BECO X - 15 : G¾" BECO X - 20 : G1" BECO X - 25 : G1¼" BECO X - 32 : G1½" BECO X - 40 : G2" |
| Length (mm) | BECO X - 15 : 165 mm BECO X - 20 : 195 mm BECO X - 25 : 225 mm BECO X - 32 : 180 mm BECO X - 40 : 200 mm |
| Width (mm) | BECO X - 15 : 81 mm BECO X - 20 : 81 mm BECO X - 25 : 81 mm BECO X - 32 : 81 mm BECO X - 40 : 81 mm |
| Height (mm) | BECO X - 15 : 100 mm BECO X - 20 : 100 mm BECO X - 25 : 118 mm BECO X - 32 : 128 mm BECO X - 40 : 135 mm |
| Temperature | Medium Range: 0.1℃…...30/50/70℃ (T30/T50/T70) Ambient temperature: 5~55 ℃ Storage temperature: -20~60 ℃ |
| Metrological Class | Class 2 R160/R200/R250/R400/R500 |
| Maximum Operation Pressure | 1.6 Mpa |
| Pressure Loss | △P≤63kPa |
| Pressure Stage | PN16 |
| Stream Field Sensitivity | U0/D0 |
| Battery | 10-16 years service life |
| Data Storage | 24/ 120 logs, daily/weekly/monthly |
| Interface & Communication | Optical Port M-Bus RS-485 Pulse LPWAN (4G (CAT1), LoRaWAN, NB-IoT, Sigfox) |
| Display and Indication | Unit: L/ m3/ Gal (Optional) LCD: 8-digit |
| Standard Compliance | EN14154 ISO4064 OIML R49 |
