Sparkle 307 weather station

The OWS series environmental monitoring station uses the most advanced sensor technology in the industry, integrates the main environmental gases and meteorological parameters, and can be widely used in meteorological, environmental protection in construction, utilities, agriculture and smart places for environmental intelligence source data.

AUD 3,484.09
Add to Cart Add Compare
Email a Friend Print

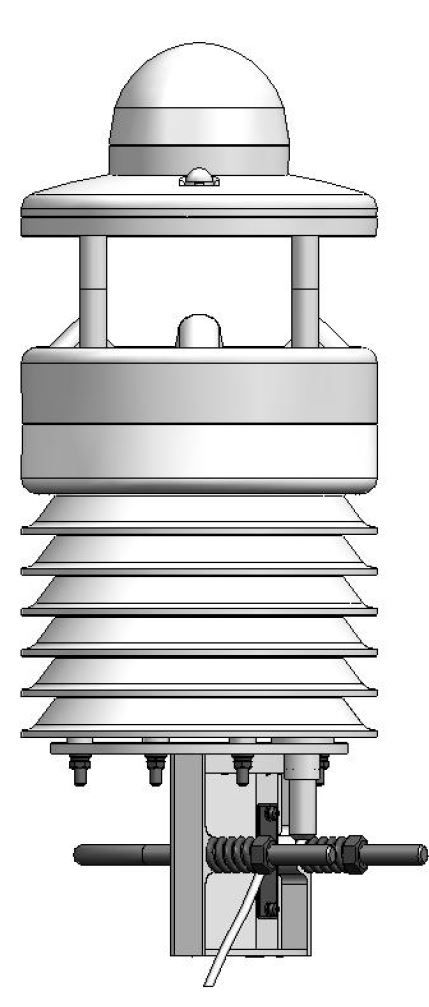

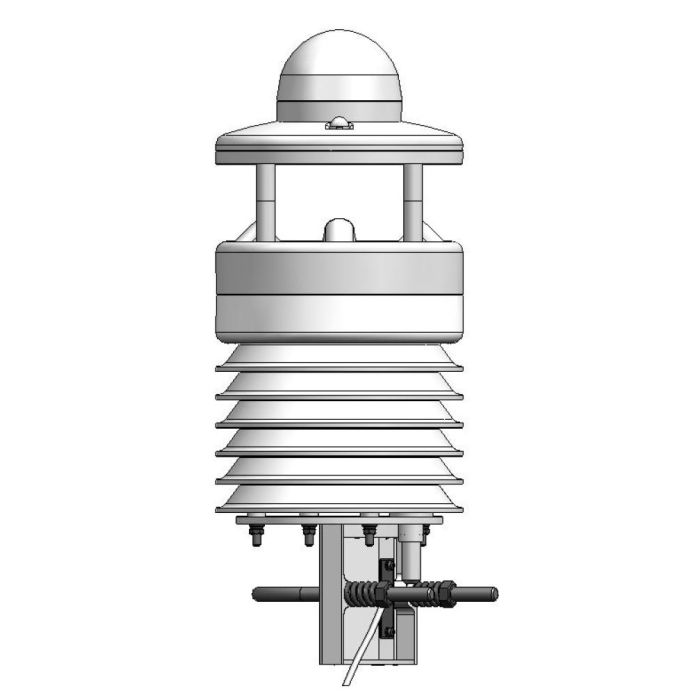

main product photo

Description

This Weather Station sensoring platform integrates a number of parameters into a single application.

Wind direction, Wind speed, Air temperature,
Relative humidity, Air pressure, Rainfall, Solar
radiation, Noise, PM2.5, PM10

The system is modularized and can be configured for industrialized intensive stationing monitoring using 12-24 Vdc solar or separate power pack for drawing from mains power.

This high technology device uses standard Modbus for RS485 connectivity. It is suited for applications in harsh environments like mining and resource recovery industries, remediation and aquifer redraw applications to apply its capability.

Description
Specification

Specification

More Informationnn
Weight 1.500000
Box Size (Length X Width X Height) 200X230X400
Power supply Power supply voltage is 12-24V DC. The power supply unit it uses must be certified to meet Class III Equipment Protection Standard (SELV)
Temperature Measuring range: -40~60° C (extension: -50-80° C), Accuracy: ±0.1° C, Long-term stability: ±1° C/Year
Humidity Measuring range: 0~100%RH Relative humidity Accuracy: ±0.8%RH Relative Humidity Long-term stability: +1%RH/Year
Wind Direction Principle: ultrasonic Measuring range: 0~360° Accuracy: ± 3° Sampling frequency up to 10Hz
Wind Speed Principle: ultrasonic Measuring range: 0 to 60 m / s Accuracy: ±0.3m/s or ±3% (0-30m/s), ±5% (>35m/s) RMS Sampling frequency up to 10Hz
Rainfall Optical scattering Resolution: 0.001mm /0.01mm/0.2mm
The UV Measuring range: 0 to 15 level Resolution: Level 1
Noise Monitoring range: 30~130dB(A) Resolution: A weighting (simulating human ear) Accuracy: ±1dB Monitoring range: 0~1000ug/m3
Radiation Measuring range: 0~2000W/m2 Resolution: 1W/m2 Accuracy: 5%
Air Pressure Measuring range: 10~1300 HPa Accuracy: ±1 hPa (25° C)
PM2.5 Resolution: 0.3ug/m3 Accuracy: ±15% or ±10 μg/m3 Monitoring range: 0~1000ug/m3
PM10 Resolution: 0.3ug/m3 Accuracy: ±15% or ±10 μg/m3 Interface RS485, baud rate (2400, 4800, 9600, 19200, 38400, etc.)
Basic Information Power supply voltage: 930VDC Operating humidity range: 0~100%RH Operating temperature range: -40 to 60 ° C (standard), extended to: -50 to 80° C Protection: IP66
Source Onesense
