Now the SparkleAir flow meter is available to provide accurate flow data from partially filled pipe or open channel. .
This high technology device is connect ready for application to a partial water course either a prescribed in-pipe and known DN specification or open channel of known cross-sectional detail.

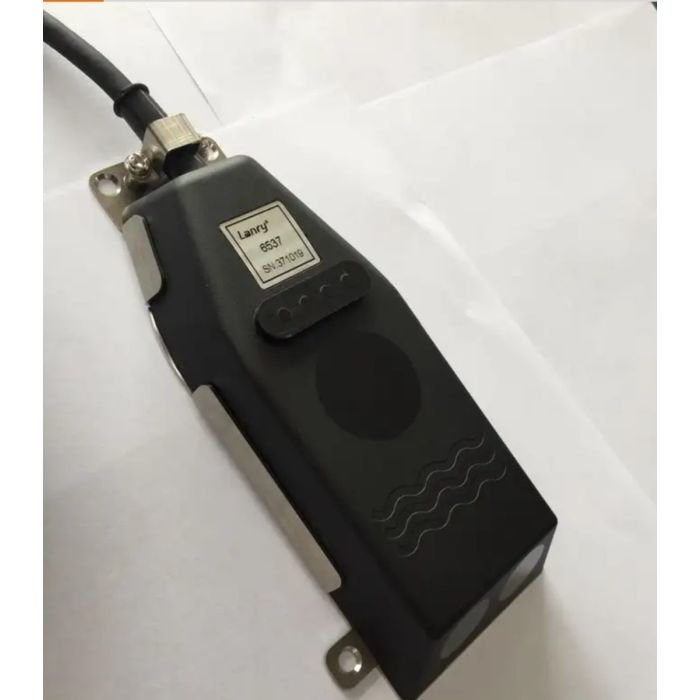

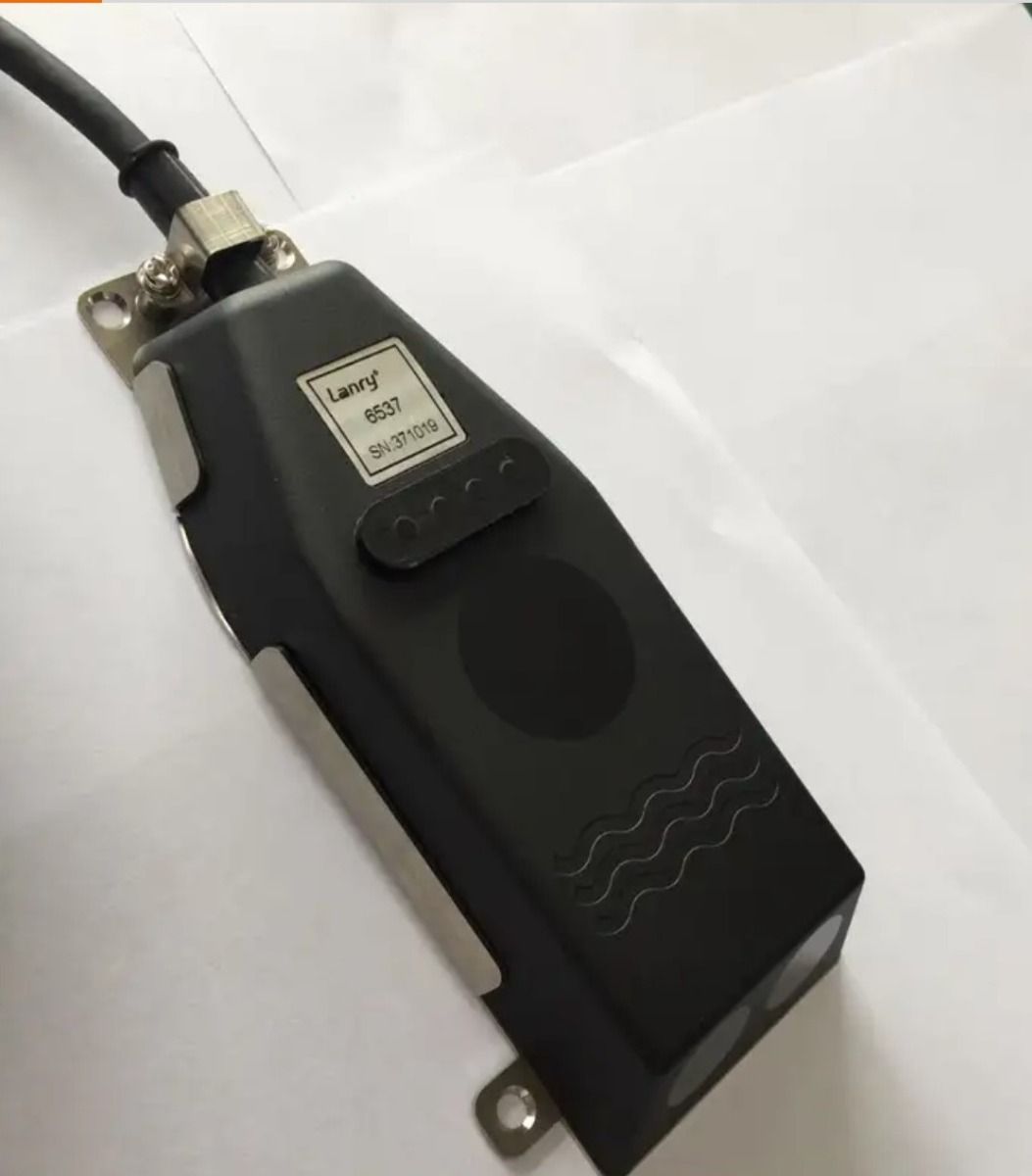

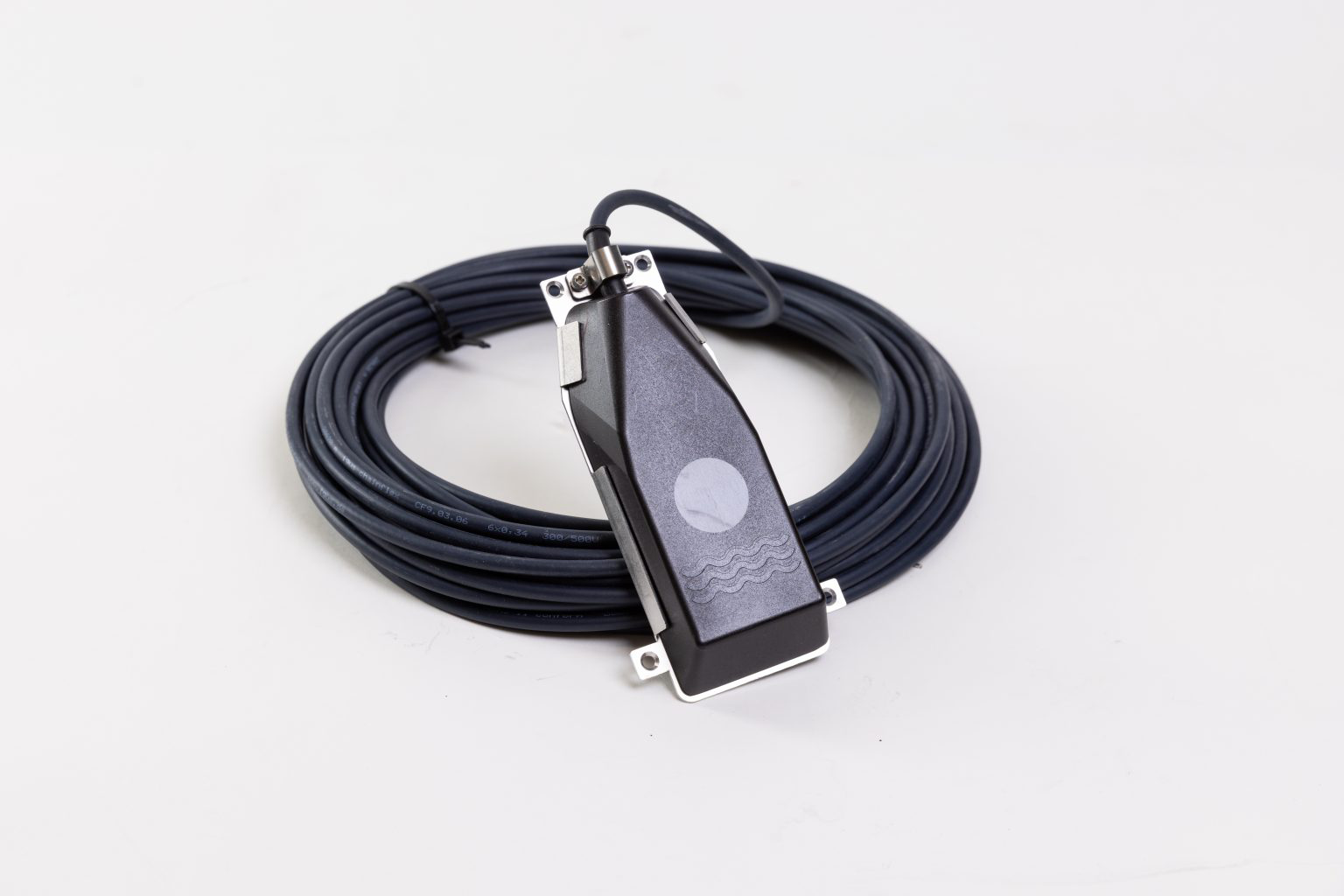

The OneSense doppler flow meter simultaneously measures water depth and velocity to then calculate the water flow past the line of point of measurement the addresses the challenges for non- pressurised flow in a piping system. The SparkleAir flow meter is available to provide accurate flow data from partially filled pipe or open channel.
The SparkleAir patrial flow meter provides crucial water data that has been a challenging application that can now be overcome from a cost effective device coupled with remote access communications and secure delivery onto a tenanted cloud platform.
Water authorities and stormwater engineers have needed a low cost and functional means to identify and calculate water dynamics particularly from remote locations in real-time.
This high technology device only requires the channel shape identification and dimensions of the cross sectional flow path at the point of monitoring crucial for managing water flows whether scarce flow or flooding currents to is one of the best tools for water managers. s connect ready for application to a partial water course either a prescribed in-pipe specification or open channel of know cross-sectional detail.
– 20mm/s to 0.8m/s
– 20mm/s to 1.6m/s in one direction (default)
– 20mm/s to 3.2m/s
– 20mm/s to 13.2m/s
– Bidirectional velocity capability, set using configuration tools
Velocity Accuracy
±1% typical
Depth Range
Ultrasonic Sensor:
20mm up to 5m above top surface of the instrument
40mm up to 5m from the base of the instrument, Absolute Pressure Sensor: 0 to 10m
Depth Accuracy
Typical ± 1%, Absolute Pressure Sensor:: Typical ± 0.19% for 0m to 5m range Typical ± 0.38% for 0m to 10m range
