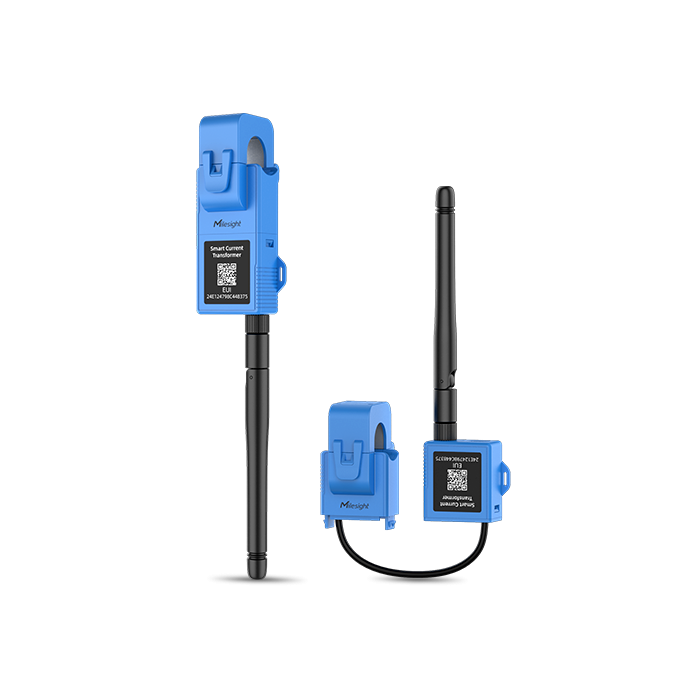

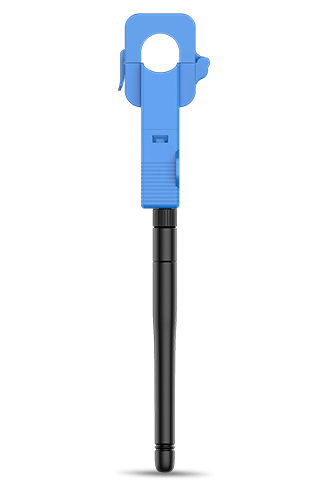

Smart Current Transformer

CT10x is a LoRaWAN® Smart Current Transformer for monitoring the energy andanalyzingconsumption remotely. CT10x provides multiple current options to suit energy monitoringandsupport sending threshold alarms. CT10x is detachable, the compact size and clamp designallowitto be installed in any indoor space quickly and safely without de-energizing a facility, simplifyingtheinstallation and saving the cost. Compliant with Milesight LoRaWAN® gateway and MilesightDevelopment Platform solution, CT10x can be monitored via webpage remotely. CT10x is widely used for energy motoring of smart buildings, machine failure detectionandprevention, etc

AUD 0.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Report the RMS current and accumulated current data by minutes

High measuring accuracy with a sampling frequency of up to 3.3 kHz

Self-powered, free from batteries or external wires

Utilize a sampling rate of up to 1s for real-time monitoring and quick alarmresponse

Compact size allows for installation in narrow scenarios

Support flexible detachable design to accommodate various installation environments

Non-invasive clamp design ensures easy and safe installation without the need for power de-energizing

Equipped with LED indicator to indicate working status and alarms

Support to connect to a temperature sensor via USB for cable temperature measurement

Compliant with standard LoRaWAN® gateways and network servers

Compliant with Milesight Development Platform

Support Firmware Update Over the Air (FUOTA) via Milesight Development Platform

Specification

More Informationnn
Largest Cubic	No
Source	Onesense
Detection Parameter	RMS Current
Sampling Frequency	3.3 kHz
Working Frequency	50~60 Hz
Rated Primary Current	CT101: 100 Arms CT103: 250 Arms CT105: 500 Arms
Rated Secondary Current	CT101: 100 mArms CT103: 125 mArms CT105: 150 mArms
Minimum Reporting Current	CT101: 6Arms (1min Interval) 4Arms (10min Interval), CT103: 12Arms (1min Interval) 6Arms (10min Interval), CT105: 30Arms (1min Interval) 10Arms (10min Interval)
Accuracy	±1 % (>5Arms), ±3 % (≤ 5Arms)
Resolution/threshold (@ 1Hz)	1 mA
Temperature Sensor	Sensor type: NTC, Measuring range: -20°C ~ 100°C
Protocol	LoRaWAN®
Antenna Connector	1 × 50 Ω SMA Connector (Center PIN: SMA Female)
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm(470 MHz)
Sensitivity	-137dBm
Mode	OTAA/ABP Class A
Button	1 × Reboot Button
LED Indicator	1 × Status/Alarm Indicator
Port	1 × USB Type-C for Power Supply, Console or Cable Temperature Sensor Connection
Display & Configuration	USB Type-C or Downlink
Power supply	1. Induced current power supply 2. 5V by USB Type-C Port
Insulation Voltage	2.5kVac(r.m.s)(1mA/1min)
Operating Temperature	-20°C~70°C (-4°F~158°F)
Storage Temperature Range	-25°C~80°C (-13°F~176°F)
Extension Cable Length	1m
Relative Humidity	≤ 95% (Non-condensing)
Ingress Protection	IP30
Dimensions	CT101 & VT103: 86.5 × 31 × 37.4 mm (3.4 × 1.22 × 1.47 in), Wire Hole: Ф 16 mm (Ф 0.63 in) CT105: Transceiver:38 × 34.5 × 16 mm(1.5 × 1.36 × 0.63in), CT Clamp: 68 × 86 × 41.8 mm(2.68 × 3.39 × 1.65in), Wire Hole: Ф36.6mm(Ф1.44 in)
Installation Method	CT Clamp: Suspended on the Testing Conductor
Regulatory	CE, FCC, UL508
Material	PBT+PC (UL94 V0)
