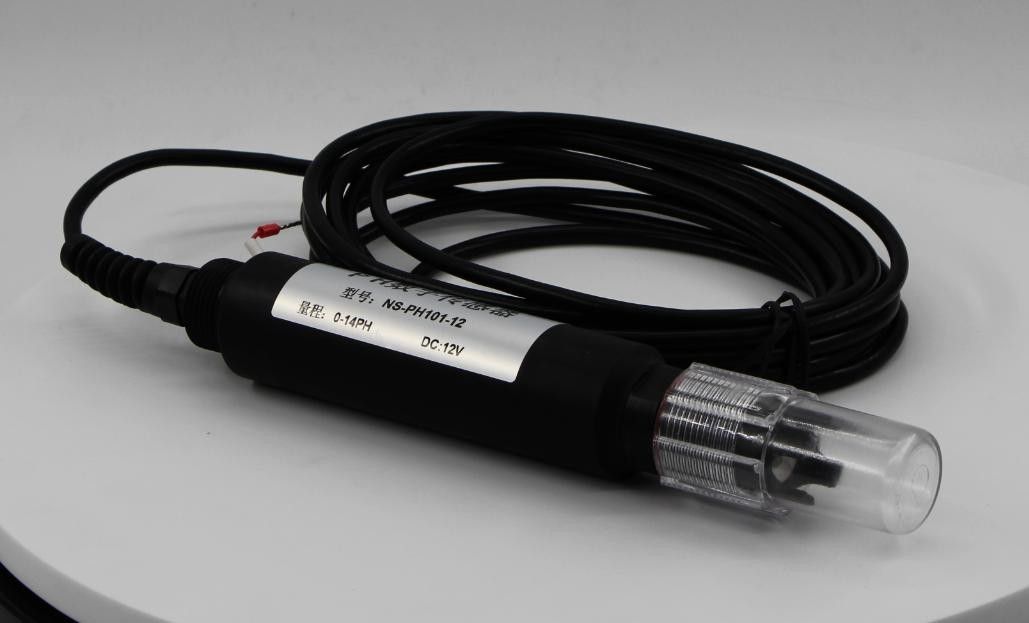

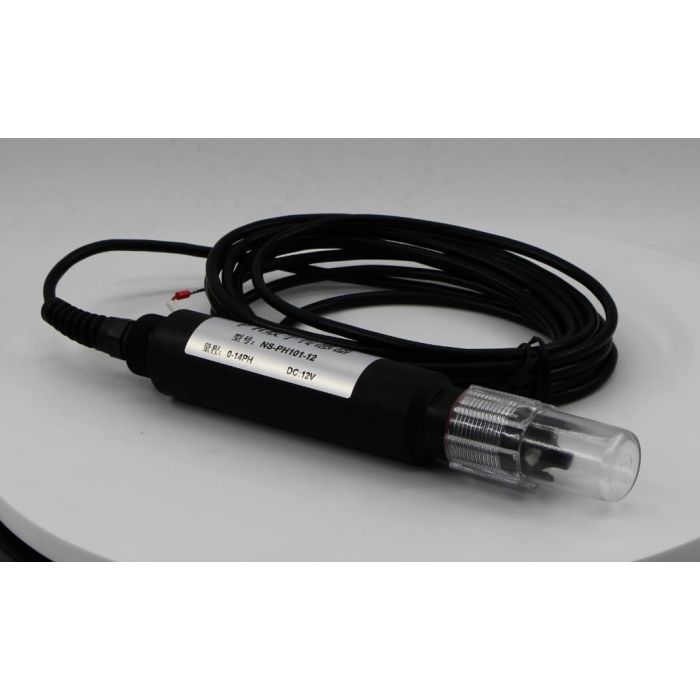

SparkleAir digital PH sensor is a new generation of intelligent water quality monitoring sensor. The data can be viewed, debugged and maintained through mobile APP or configuration application. This sensor can accurately measure PH value and temperature value in solution.
This pH sensor is widely used in the monitoring of wastewater treatment and water cycle flows in streams and waterways. This pH sensor can be applied in the field of aquaculture, food, hydroponics, pharmacy, fermentation, chemical industry and for environmental monitoring of surface water and pollution discharge for remote system application.
SparkleAir digital PH sensor is a new generation of intelligent water quality monitoring sensor. The data can be viewed, debugged and maintained through mobile APP or configuration application. The SparkelAir pH sensor has several advantages, such as simple maintenance, high stability, excellent repeatability and multi-function. It can accurately measure PH value and temperature value in solution.
This pH sensor is widely used in the monitoring of wastewater treatment and water cycle flows in streams and waterways. This pH sensor can be applied in the field of aquaculture, food, hydroponics, pharmacy, fermentation, chemical industry and for environmental monitoring of surface water and pollution discharge for remote system application.
Main features
A digital PH sensor which can directly output RS485 signal. The product can maintain high accuracy, high stability and strong anti-interference ability. Automatic temperature compensation function. This sensor can directly connect to PLC's and other equipment with RS485/4-20ma signal interface for data acquisition and maintenance. Capably of using a mobile APP to collect, debug and maintain the sensor data through RS485 to USB module or wireless network with WIFI and GPRS. The sensor can be set through RS485 function for device ID and baud rate, online calibration, restoration of factory output, the corresponding range of 4-20mA output (4-20mA is optional), scale coefficient and incremental compensation. Two point correction is used. A charge is measured relative to the solution, so the solution “ground” voltage comes from the reference junction used by a pH sensor.
This high technology device is connect ready for applications in harsh environemts like mining and resource recovery industries, remediation and aquifer redraw applications as examples of the capability.

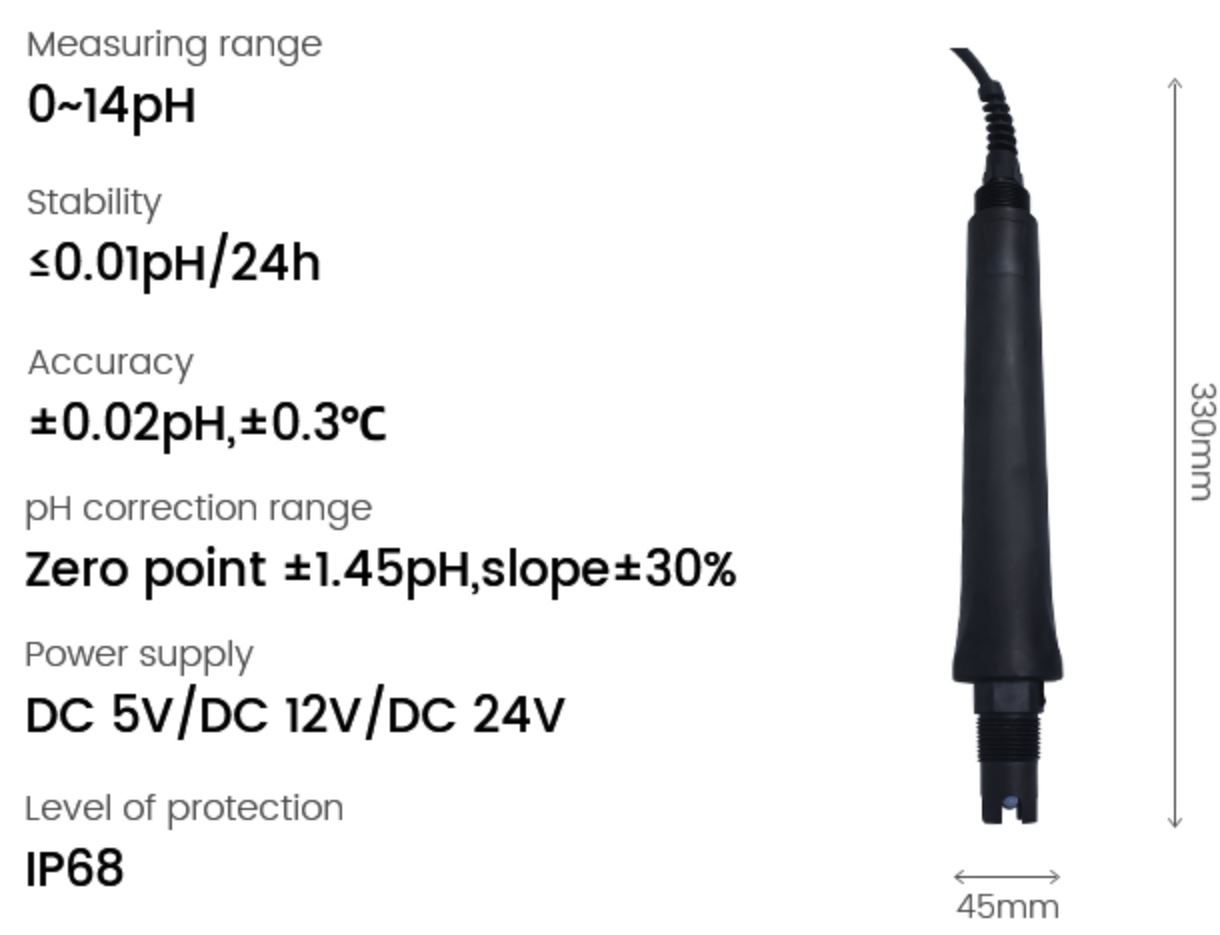

Specification
More Informationnn
Weight
0.400000
Box Size (Length X Width X Height)
150X150X400
Temperature
temperature of 0 ~ 60 ℃
Measuring Range
0.00-14.00PH, 1-100.0℃
Accuracy
±0.02 PH, ±0.3℃
Output Load
4-20mA load<750Ω (optional)
Working Voltage
DC12V,24V, 5V
Temperature compensation
0-99.9℃(PH) PT1000
Protection Level
IP68
485 Interface
support for Internet of things (partial compatibility of MODBUS protocol)
